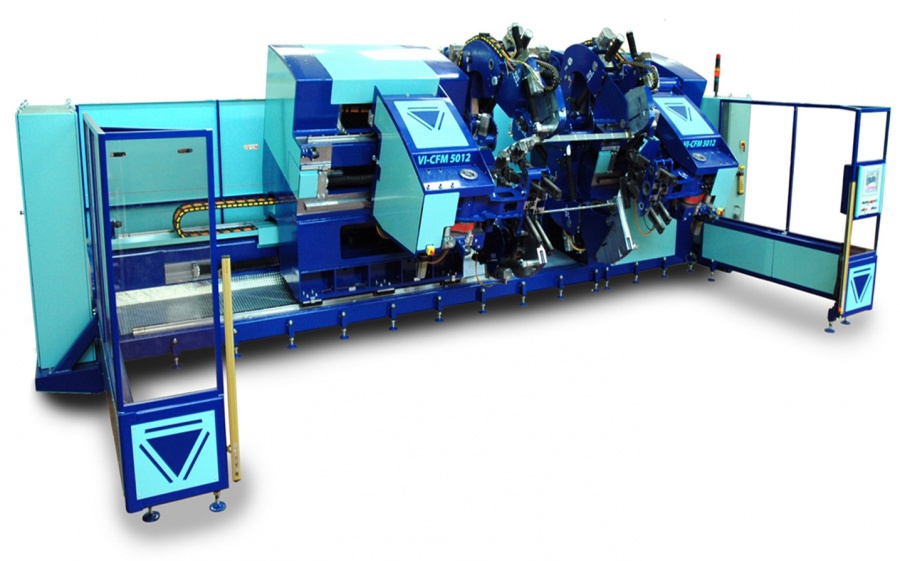

CFM - Coil Forming Machine
Automatic machine to form loops with a maximum length up to 5m.
The CFM machine is the most sold machine of VINCENT INDUSTRIE using highest quality standards recognized throughout the Energy industry thanks to its reliability and robustness. Indeed, the first machine was installed in 2000 and is still in operation.
The Coil Forming Machine is designed to automatically form coils to their final shape without using any additional process before or after forming. Lowest tolerances assure the perfect fitting of the coils into the slots without manual reworking of the coils.
This equipment will thereby optimize your productivity and reduce your production costs at the same time for a better manufacturing management.
- Completely electrical machine, no hydraulics
- Accurate positioning, fast manoeuvring and great flexibility using only brushless motors;
- Soft forming process for all types of coils (standard, trapezoid, flat) in order to avoid any damages of coil surface;
- Fast setup of machine for new geometries, PLC control, parameter storage, error assistance messages;
- High forming accuracy (± 1 mm on clamps positioning);
- Flexible and adjustable evolvent shapers as modular systems to be able to form all possible evolvent lengths and shapes, no manual work is required even for high opening angles;
- Over 40 machines installed successfully worldwide;
This equipment is flexible and can easily be adapted to your requirements and your production needs.
